Iscar

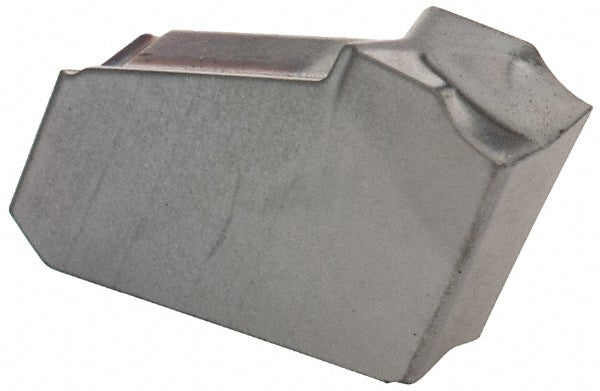

Solid Carbide Insert, Grade IC328, Coated - Iscar 6096145
MFR# 6096145Cat# GFR 3J-8DSeries Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6096145 is a solid carbide indexable insert, grade IC328, Coated coated.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0098
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleGFR
Lead angle8
Lead angle directionRight Hand
Manufacturers catalog numberGFR 3J-8D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Single or double endSingle
