Iscar

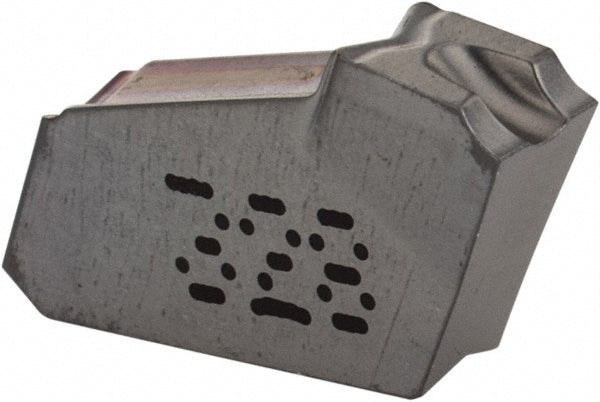

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6096245
MFR# 6096245ISO/ANSI# ISO 13399Cat# GFN 3USSeries Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6096245 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerU
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 3US
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
