Iscar

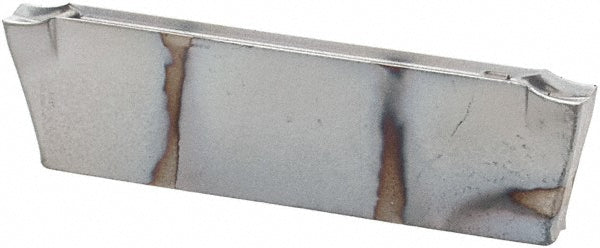

ISO 13399 Solid Carbide Insert, Grade IC308, Coated - Iscar 6096428
MFR# 6096428ISO/ANSI# ISO 13399Cat# DGN 1402JSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC308
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6096428 is a ISO 13399 solid carbide indexable insert, grade IC308, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0063
Cutting tool applicationGrooving; Parting
Cutting width0.0550
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size code1402
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 1402J
Manufacturer gradeIC308
Material gradeSubmicron
Maximum depth of cut0.5906
Multi use toolYes
Overall length0.6220
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
