Iscar

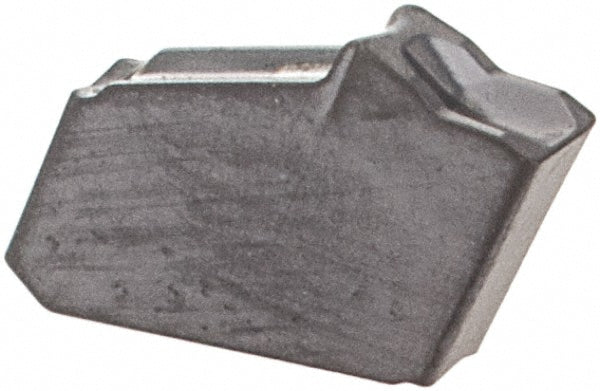

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6096570
MFR# 6096570ISO/ANSI# ISO 13399Series Self-Grip
$17.15List $22.00
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6096570 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0063
Cutting width0.0630
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size16
Insert size code16
Insert styleGFN
Iso codeISO 13399
Manufacturer gradeIC908
Multi use toolYes
Overall width0.0630
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
