Iscar

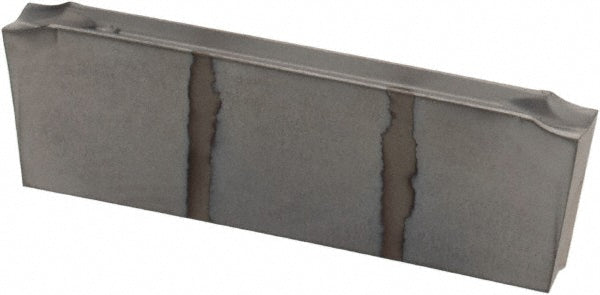

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6096788
MFR# 6096788ISO/ANSI# ISO 13399Cat# DGN 2200JSSeries Do-Grip
$33.81List $43.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6096788 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationGrooving; Parting
Cutting width0.0866
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2200
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 2200JS
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.7090
Multi use toolYes
Overall length0.7638
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
