Iscar

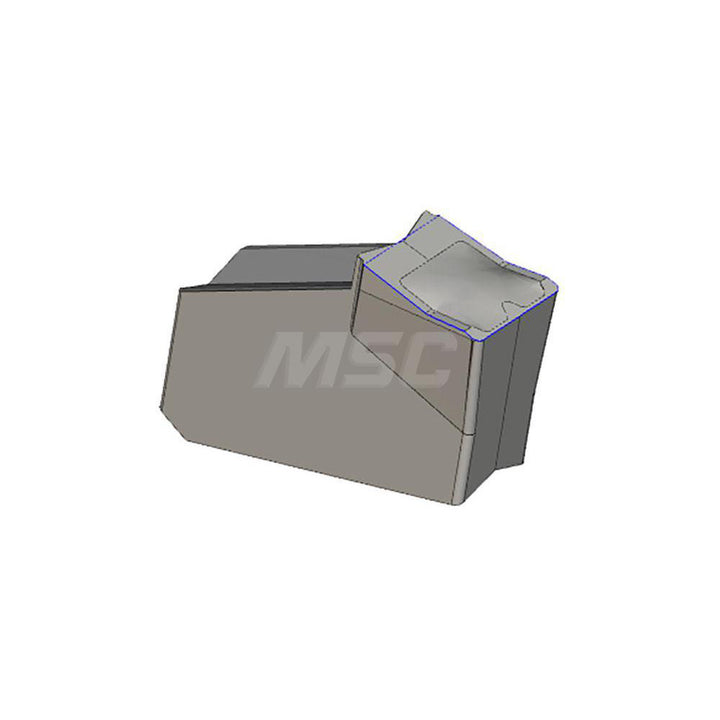

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6097806
MFR# 6097806ISO/ANSI# ISO 13399Cat# GFN 3WSeries Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6097806 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerW
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 3W
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
