Iscar
ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6097950
MFR# 6097950ISO/ANSI# ISO 13399Series Self-Grip
$20.03List $25.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description

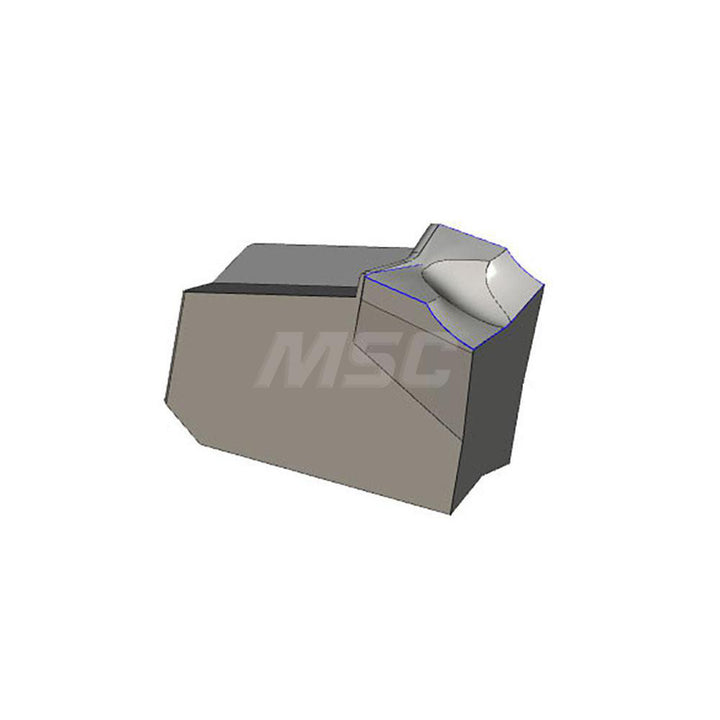

The Iscar 6097950 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0012
Cutting tool applicationParting
Cutting width0.1181
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleGFR
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
