Iscar

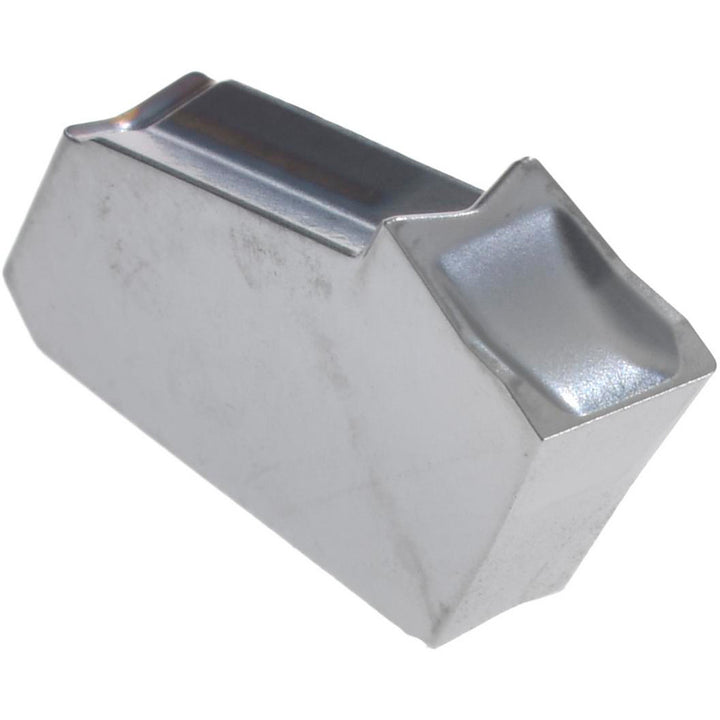

ISO 13399 Carbide Insert, Grade IC354, Coated - Iscar 6098646
MFR# 6098646ISO/ANSI# ISO 13399Cat# GFL 3-4DSeries Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialCarbide
CoatingCoated
Description
The Iscar 6098646 is a ISO 13399 carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationCut-off
Cutting width0.1181
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code3
Insert styleGFL
Iso codeISO 13399
Lead angle4
Lead angle directionLeft Hand
Manufacturers catalog numberGFL 3-4D
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
