Iscar

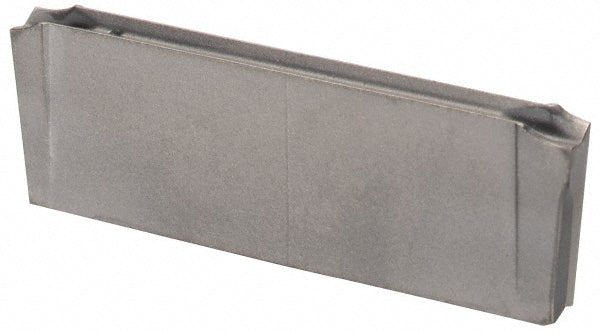

DGR 2200JS-15D Solid Carbide Insert, Grade IC20 - Iscar 6098696
MFR# 6098696ISO/ANSI# DGR 2200JS-15DCat# DGR 2200JS-15DSeries Cut Grip
$25.84List $33.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6098696 is a DGR 2200JS-15D solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerJS
Corner radius0.0008
Cutting width0.0866
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size2200
Insert size code2200JS15D
Insert styleDGR
Iso codeDGR 2200JS-15D
Manufacturers catalog numberDGR 2200JS-15D
Manufacturer gradeIC20
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.8110
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
