Iscar

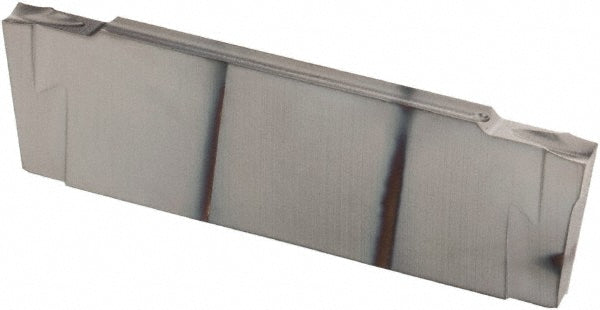

ISO 13399 Solid Carbide Insert, Grade IC308, Coated - Iscar 6099629
MFR# 6099629ISO/ANSI# ISO 13399Cat# DGR 1500J-8DSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC308
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6099629 is a ISO 13399 solid carbide indexable insert, grade IC308, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0020
Cutting tool applicationParting
Cutting width0.0591
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1500
Insert styleDGR
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturers catalog numberDGR 1500J-8D
Manufacturer gradeIC308
Material gradeC6; C7
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8200
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
