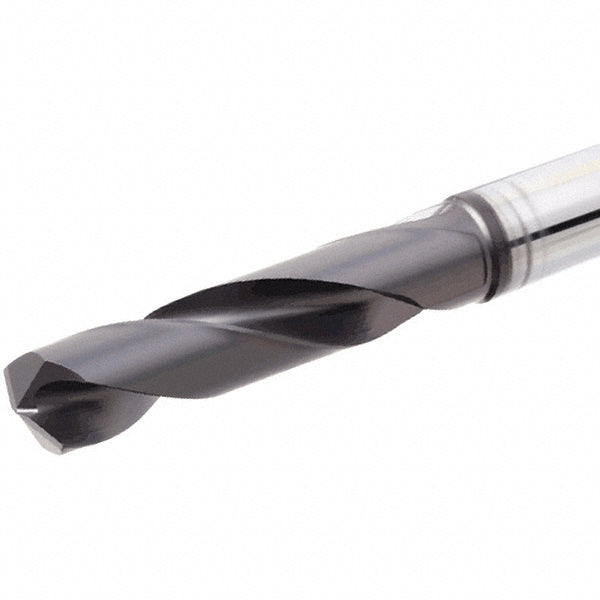

5.50mm Solid Carbide Drill Bit, TiAlN, 140° point - Iscar 6154732

Iscar

5.50mm Solid Carbide Drill Bit, TiAlN, 140° point - Iscar 6154732

MFR# 6154732Series SCD-AP3N

$100.65List $128.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Iscar 6154732 is a 5.50mm Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, hardened materials, aluminum & non-ferrous, stainless steel, steel, high-temp alloy. Series SCD-AP3N.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh6
Drill bit materialSolid Carbide
Drill bit size (mm)5.50
Drill bit size range (mm)5.00 - 6.00
Drill point angle degrees140
Drill point length (mm)0.90
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Material gradeFine Grain
Maximum drilling depth (mm)20.00
Number of flutes2
Overall length2.5984
Point typeStandard
Primary workpiece materialCast Iron; Hardened Materials; Aluminum & Non-Ferrous; Stainless Steel; Steel; High-Temp Alloy
Shank diameter (mm)6
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
StandardsISO 13399
Tool applicationHolemaking
