Iscar

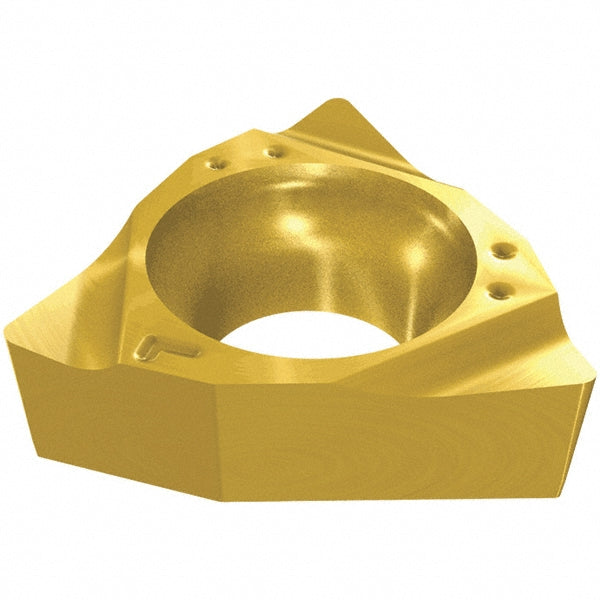

WBMT 520L Carbide Insert, Grade IC20N - Iscar 6166994
MFR# 6166994ISO/ANSI# WBMT 520LSeries Isoturn
$16.22List $20.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC20N
MaterialCarbide
Description
The Iscar 6166994 is a WBMT 520L carbide indexable insert, grade IC20N.
Specifications
ChipbreakerT
Coating processUncoated
Corner radius0.0080
Included angle80
Inscribed circle0.1560
Insert handLeft Hand
Insert materialCarbide
Insert shapeTrigon
Insert size code520
Insert styleWBMT
Iso codeWBMT 520L
Length0.0860
Manufacturers catalog number6166994
Manufacturer gradeIC20N
Maximum depth of cut0.0790
Relief angle5
StandardsISO 13399
