Iscar

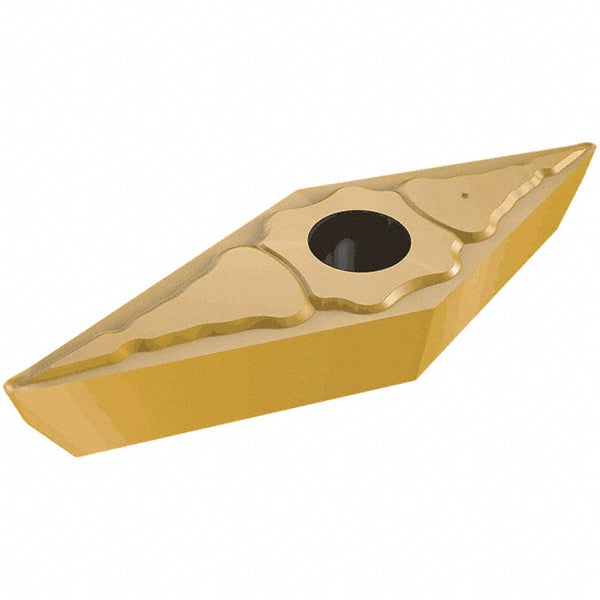

VCMT 331-FPC Carbide Insert, Grade IC520N, TiCN - Iscar 6170087
MFR# 6170087ISO/ANSI# VCMT 331-FPCSeries Isoturn
$23.79List $30.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520N
MaterialCarbide
CoatingTiCN
Description
The Iscar 6170087 is a VCMT 331-FPC carbide indexable insert, grade IC520N, TiCN coated.
Specifications
Chip breakerFPC
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0160
Included angle35
Inscribed circle in3/8
Insert handRight Hand
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness0.1870
Iso codeVCMT 331-FPC
Length range0.6500 - 0.7000
Manufacturers catalog number6170087
Manufacturer gradeIC520N
Maximum depth of cut0.0790
Multi use applicationTurning
Relief angle7
StandardsISO 13399
Tolerance codeM
