Iscar

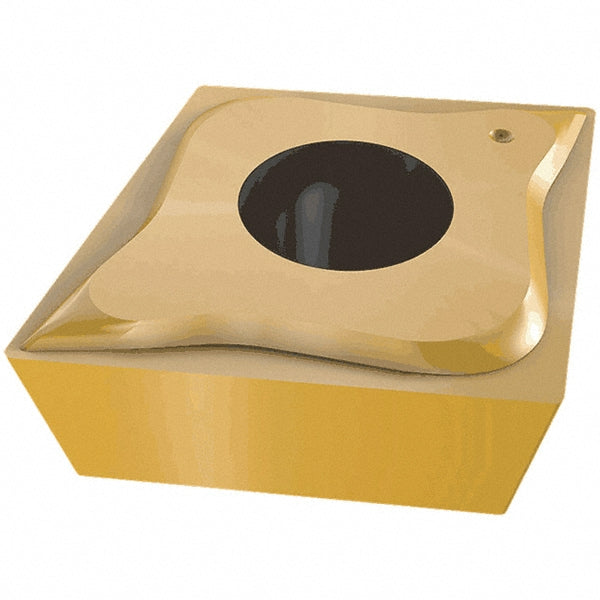

CCMT 3-2-FPC Solid Carbide Insert, Grade IC520N, TiCN - Iscar 6170092
MFR# 6170092ISO/ANSI# CCMT 3-2-FPCSeries Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC520N
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6170092 is a CCMT 3-2-FPC solid carbide indexable insert, grade IC520N, TiCN coated. Suited for m, p.
Specifications
Chip breakerFPC
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0310
Hole diameter0.1730
Included angle80.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-2
Insert styleCCMT
Insert thickness0.1560
Iso codeCCMT 3-2-FPC
Length range0.3000 - 0.4000
Manufacturers catalog number6170092
Manufacturer gradeIC520N
Maximum depth of cut0.1100
Multi use applicationTurning
Primary workpiece materialM; P
Relief angle7
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
