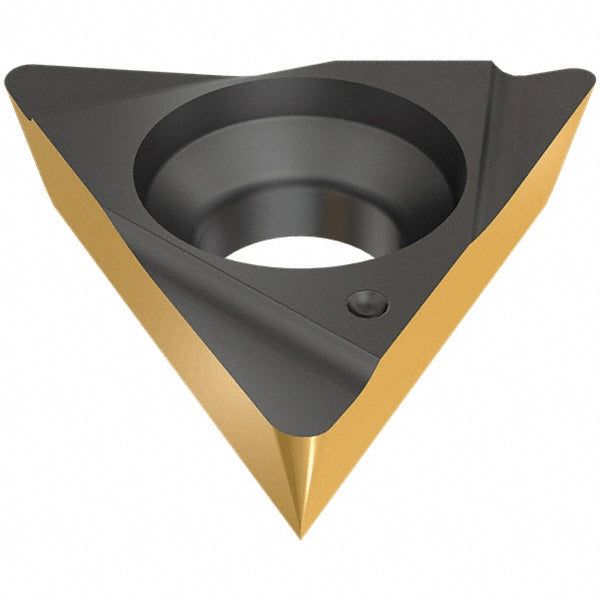

TPGX 221-L Carbide Insert, Grade IC520N, TiCN - Iscar 6172492

Iscar

TPGX 221-L Carbide Insert, Grade IC520N, TiCN - Iscar 6172492

MFR# 6172492ISO/ANSI# TPGX110304Series Isoturn

$19.33List $24.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeIC520N
MaterialCarbide
CoatingTiCN

Description

The Iscar 6172492 is a TPGX 221-L carbide indexable insert, grade IC520N, TiCN coated.

Specifications

Ansi insert codeTPGX221
Ansi size code221
Chip breakerL
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius0.0160
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1380
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPGX
Insert thickness in1/8
Iso codeTPGX 221-L
Iso insert codeTPGX110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number6172492
Manufacturer gradeIC520N
Maximum depth of cut0.1180
Multi use applicationTurning
Relief angle11
Side clearancePositive
StandardsISO 13399
Tolerance codeG
