Iscar

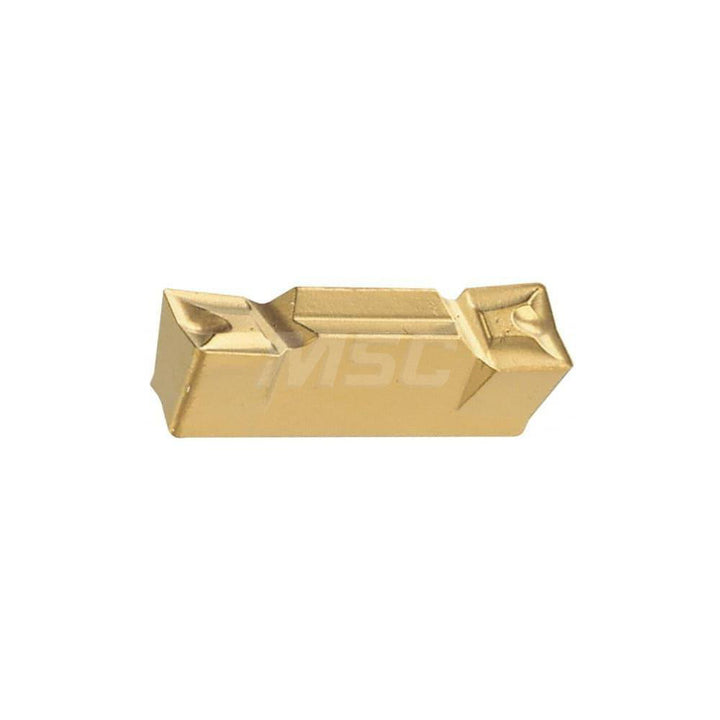

ISO 13399 Carbide Insert, Grade IC20 - Iscar 6200043
MFR# 6200043ISO/ANSI# ISO 13399Series Heliface
$28.66List $36.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialCarbide
Description
The Iscar 6200043 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Corner radius0.0157
Cutting width0.1969
Full radiusNo
Insert handLeft Hand
Insert materialCarbide
Insert size5004
Insert size code5004
Insert styleHFPL
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.748
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
