Iscar
ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6200044
MFR# 6200044ISO/ANSI# ISO 13399Series Heliface
$28.66List $36.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description

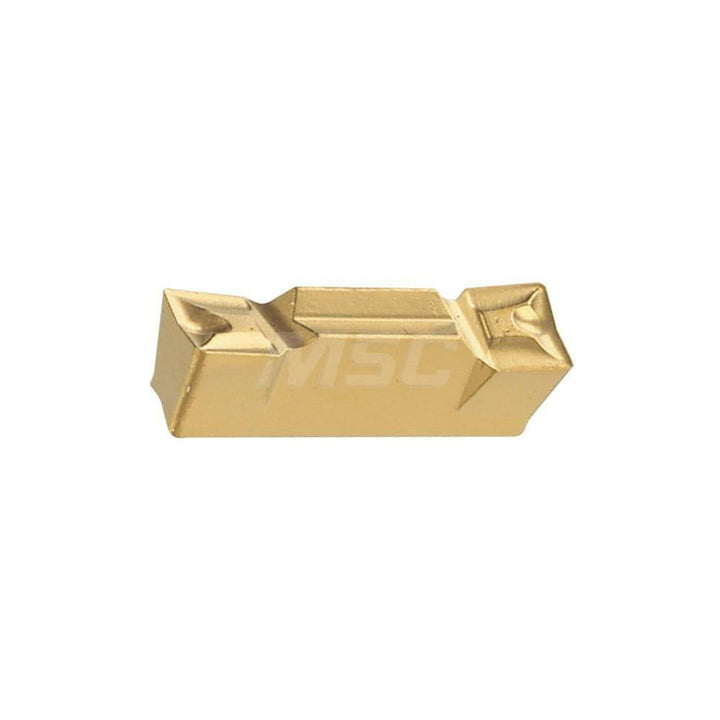

The Iscar 6200044 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Corner radius0.0157
Cutting width0.1969
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size5004
Insert size code5004
Insert styleHFPR
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
