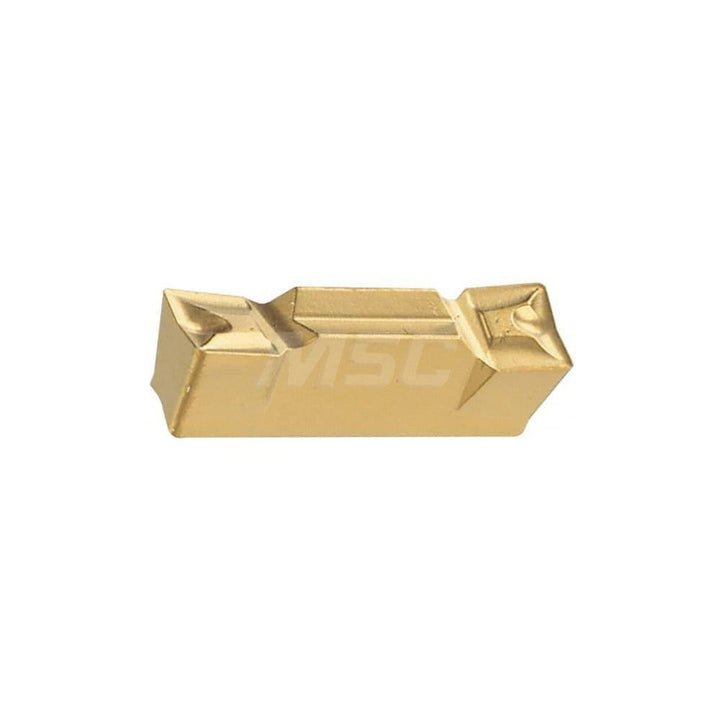

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6200047
MFR# 6200047ISO/ANSI# ISO 13399Series Heliface
$31.47List $40.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6200047 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Corner radius0.0157
Cutting width0.2362
Full radiusNo
Insert handLeft Hand
Insert materialSolid Carbide
Insert size6004
Insert size code6004
Insert styleHFPL
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
