Iscar

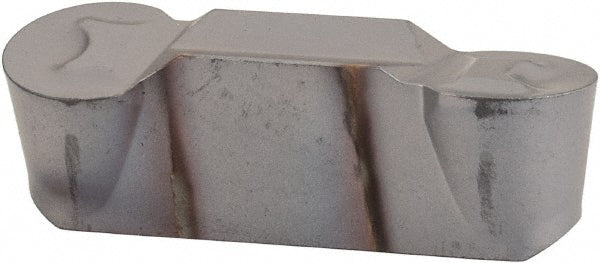

ISO 13399 Carbide Insert, Grade IC354, TiCN - Iscar 6200082
MFR# 6200082ISO/ANSI# ISO 13399Series Heliface
$42.87List $54.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialCarbide
CoatingTiCN
Description
The Iscar 6200082 is a ISO 13399 carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.1180
Cutting width0.2362
Full radiusYes
Insert handLeft Hand
Insert materialCarbide
Insert size6030
Insert size code6030
Insert styleHFPL
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC354
Material gradeC5; C6
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.748
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
