Iscar

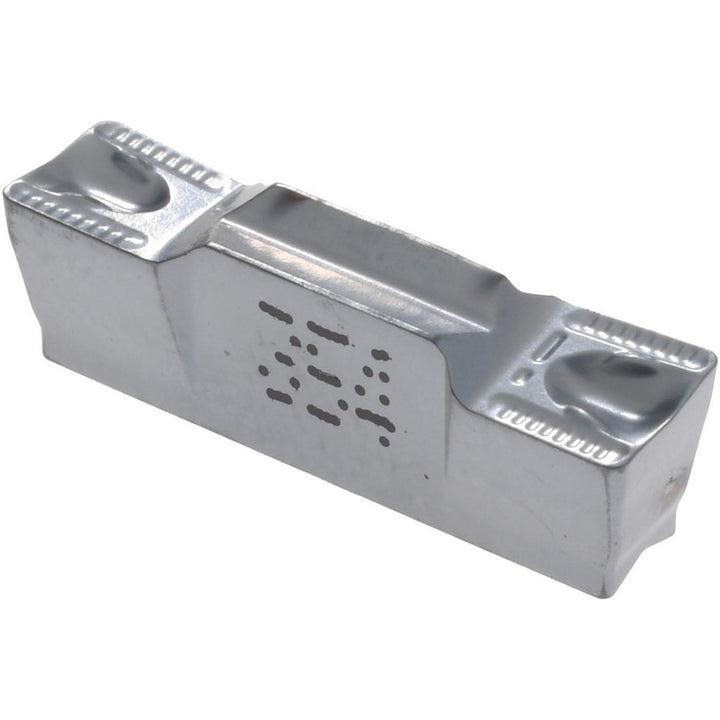

ISO 13399 Carbide Insert, Grade IC354, TiCN - Iscar 6200088
MFR# 6200088ISO/ANSI# ISO 13399Series Heli-Grip
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialCarbide
CoatingTiCN
Description
The Iscar 6200088 is a ISO 13399 carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert height0.1970
Insert materialCarbide
Insert size5005
Insert size code5005Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC354
Material gradeC5; C6
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.748
Primary workpiece materialStainless Steel; Steel
StandardsISO 13399
