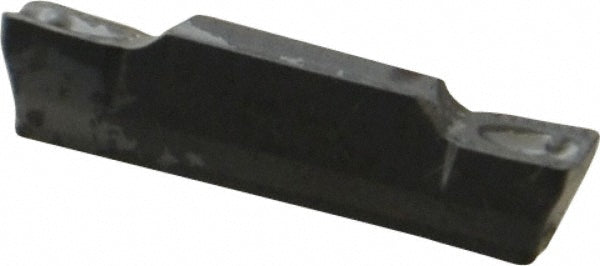

ISO 13399 Solid Carbide Insert, Grade IC354, TiCN - Iscar 6200100
MFR# 6200100ISO/ANSI# ISO 13399Series Heli-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6200100 is a ISO 13399 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishTiCN
Coating processPVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert height0.1970
Insert materialSolid Carbide
Insert size3003
Insert size code3003Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC354
Material gradeC5; C6
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6299
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
