Iscar

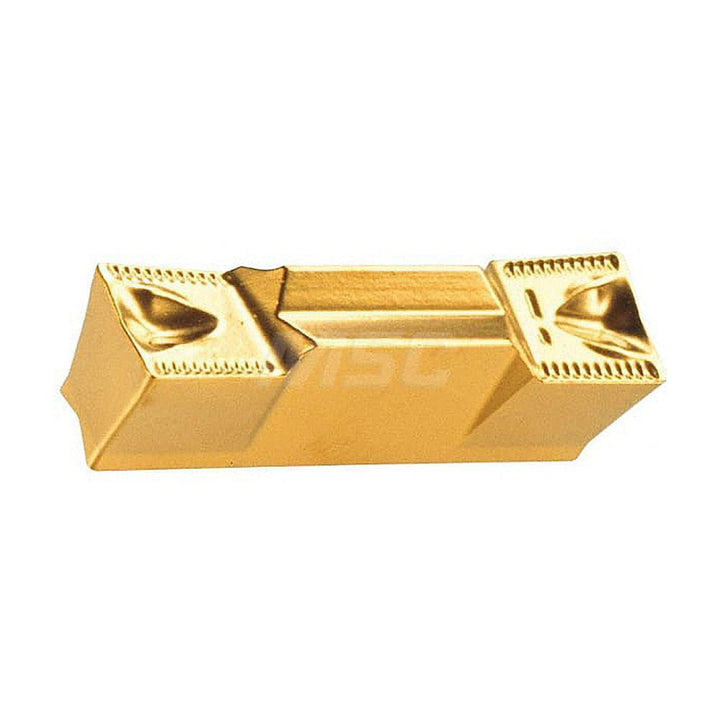

ISO 13399 Carbide Insert, Grade IC418, Al2O3 - Iscar 6200108
MFR# 6200108ISO/ANSI# ISO 13399Series Heli-Grip
$28.61List $36.00
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC418
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6200108 is a ISO 13399 carbide indexable insert, grade IC418, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processCVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size3003
Insert size code3003Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC418
Material gradeC2; C3
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6299
Primary workpiece materialCast Iron
RakePositive
Rake angle7
StandardsISO 13399
