Iscar

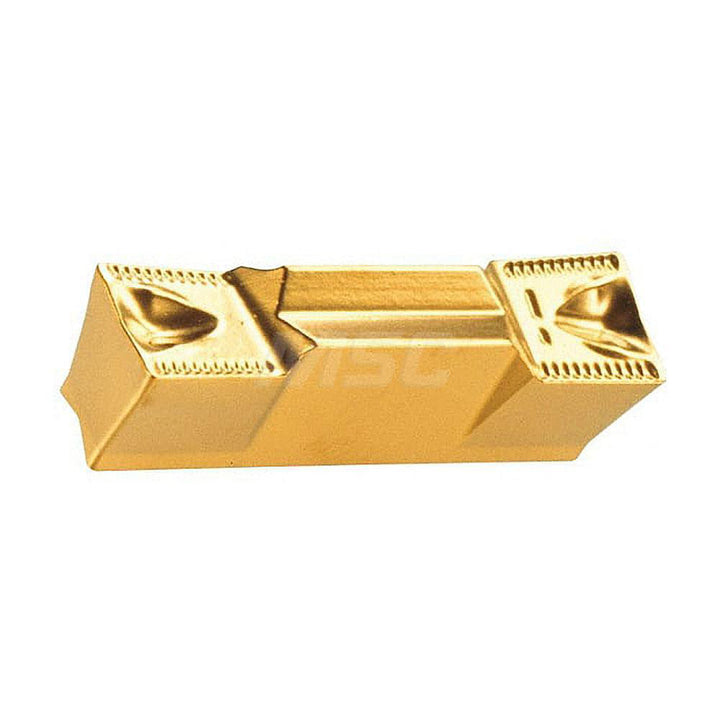

ISO 13399 Solid Carbide Insert, Grade IC418, Al2O3 - Iscar 6200111
MFR# 6200111ISO/ANSI# ISO 13399Series Heli-Grip
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC418
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200111 is a ISO 13399 solid carbide indexable insert, grade IC418, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processCVD
Corner radius0.0197
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size5005
Insert size code5005Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC418
Material gradeC2; C3
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialCast Iron
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
