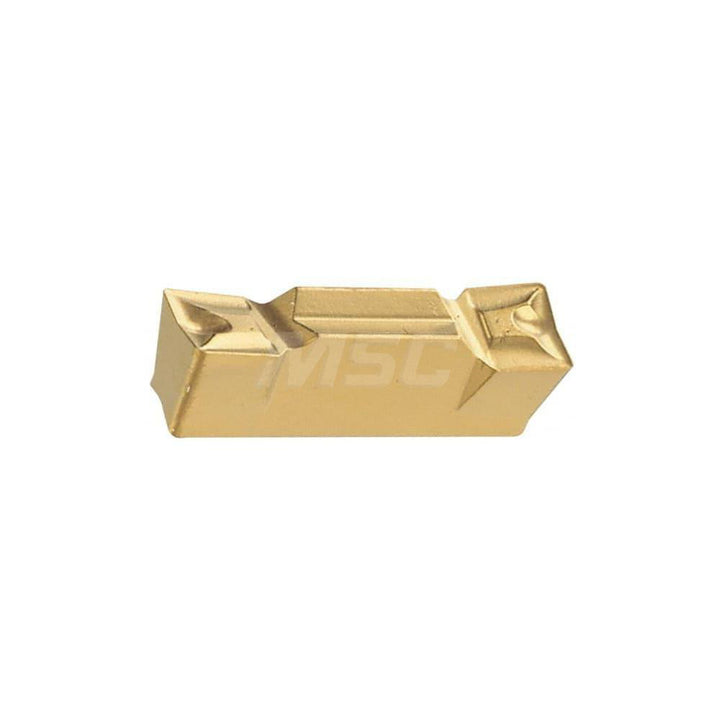

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6200115
MFR# 6200115ISO/ANSI# ISO 13399Series Heli-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6200115 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerY
Coating finishTiCN
Coating processPVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3003
Insert size code3003Y
Insert styleHGPL
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6299
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
