Iscar

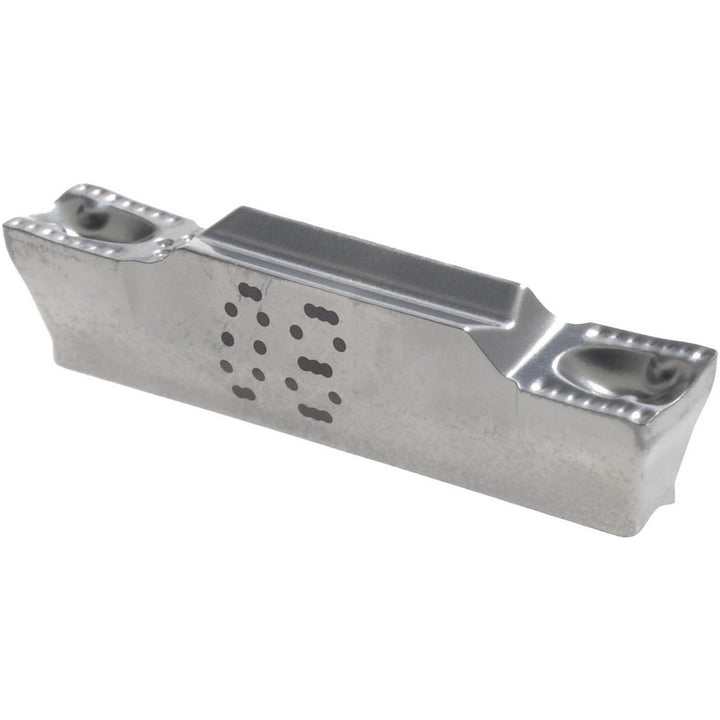

ISO 13399 Carbide Insert, Grade IC08 - Iscar 6200119
MFR# 6200119ISO/ANSI# ISO 13399Series Heli-Grip
$25.12List $31.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialCarbide
Description
The Iscar 6200119 is a ISO 13399 carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Chip breakerY
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size3002
Insert size code3002Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC08
Material gradeC2
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6299
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7
StandardsISO 13399
