Iscar

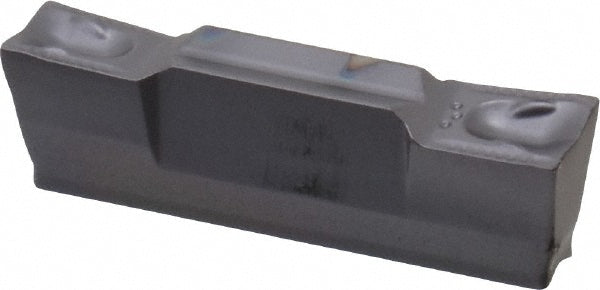

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6200122
MFR# 6200122ISO/ANSI# ISO 13399Series Heli-Grip
$35.28List $44.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6200122 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size4002
Insert size code4002Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
