Iscar

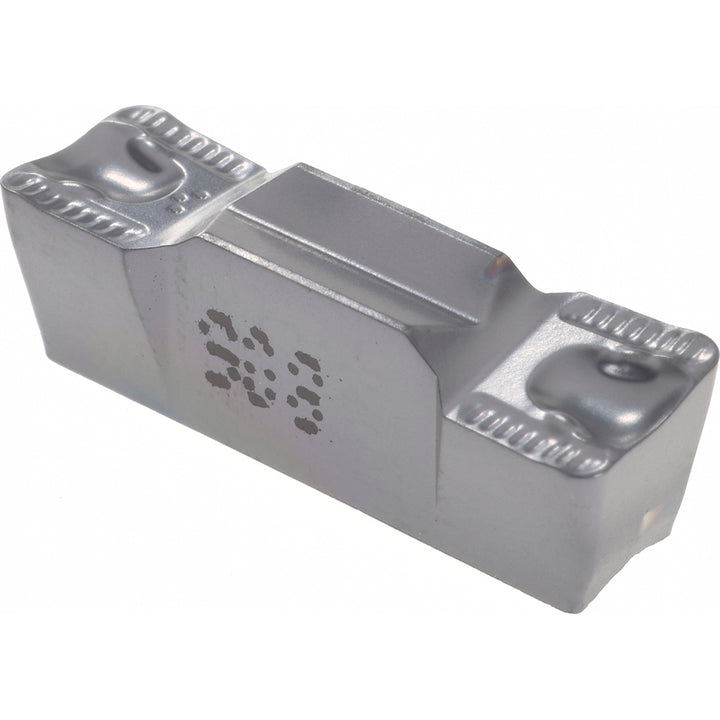

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6200125
MFR# 6200125ISO/ANSI# ISO 13399Series Heli-Grip
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6200125 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size6008
Insert size code6008Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1417
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
