Iscar

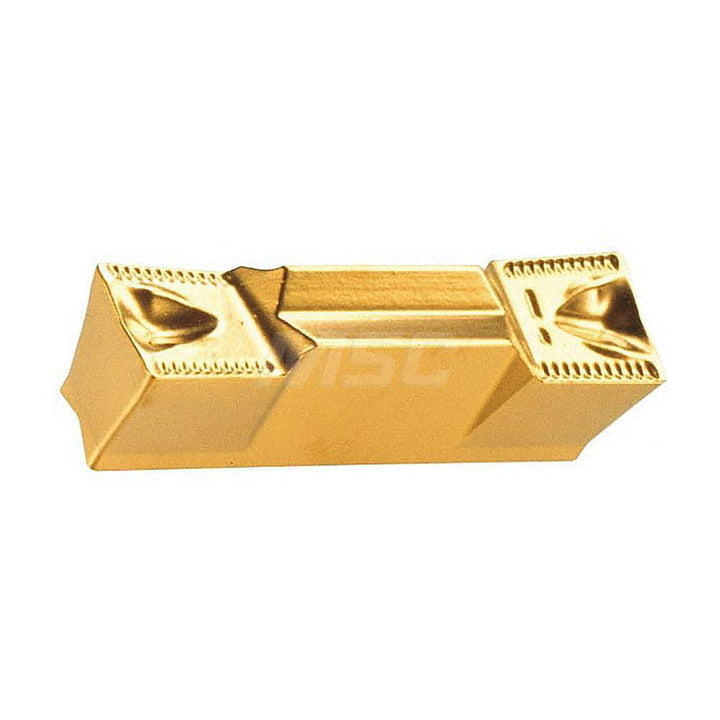

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 6200129
MFR# 6200129ISO/ANSI# ISO 13399Series Heli-Grip
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6200129 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.1969in
Full radiusNo
Insert handNeutral
Insert height0.1970
Insert materialCarbide
Insert size5008
Insert size code5008Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0degree
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7480in
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
StandardsISO 13399
