Iscar

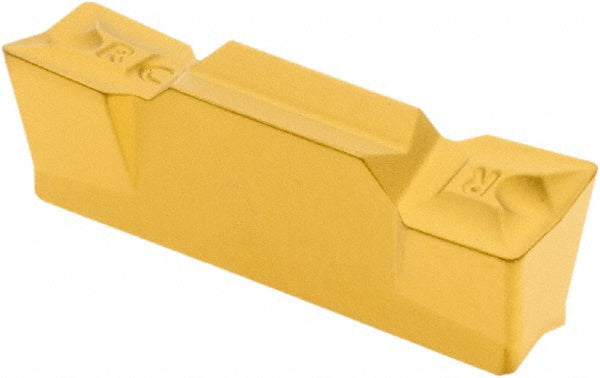

HFPR 5004 Solid Carbide Insert, Grade IC9015, Al2O3 - Iscar 6200135
MFR# 6200135ISO/ANSI# HFPR 5004Cat# HFPR 5004Series Heliface
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC9015
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200135 is a HFPR 5004 solid carbide indexable insert, grade IC9015, Al2O3 coated. Suited for cast iron, steel.
Specifications
Coating finishAl2O3
Coating processCVD
Corner radius0.0157
Cutting width0.1969
Full radiusYes
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size5004
Insert size code5004
Insert styleHFPR
Iso codeHFPR 5004
Manufacturers catalog numberHFPR 5004
Manufacturer gradeIC9015
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7480
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
