Iscar

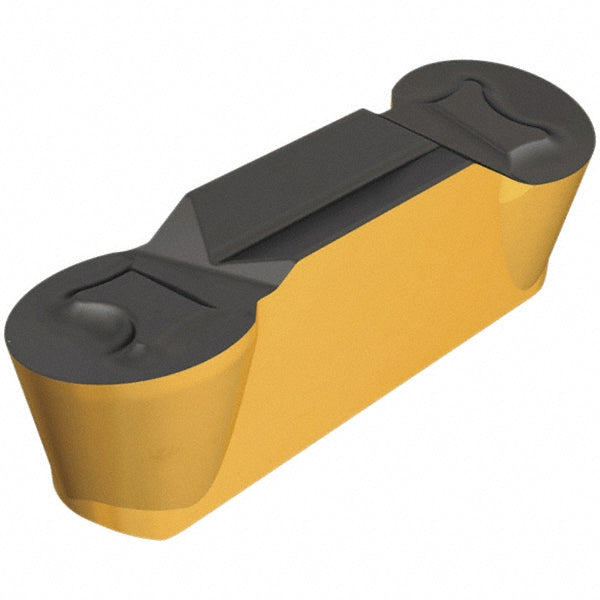

ISO 13399 Carbide Insert, Grade IC9015, Al2O3 - Iscar 6200139
MFR# 6200139ISO/ANSI# ISO 13399Series Heliface
$37.48List $48.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC9015
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6200139 is a ISO 13399 carbide indexable insert, grade IC9015, Al2O3 coated. Suited for cast iron, steel.
Specifications
Coating finishAl2O3
Coating processCVD
Corner radius0.1180
Cutting width0.2362
Full radiusYes
Insert handRight Hand
Insert materialCarbide
Insert size6030
Insert size code6030
Insert styleHFPR
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC9015
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.748
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle7
StandardsISO 13399
