Iscar

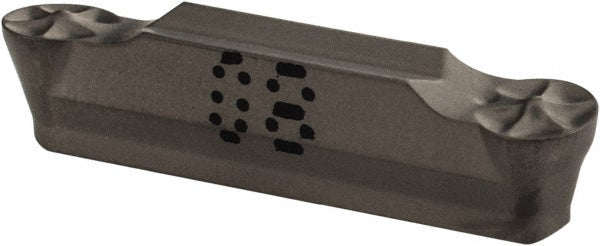

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6200142
MFR# 6200142ISO/ANSI# ISO 13399Series Heli-Grip
$25.92List $33.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6200142 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Chip breakerY
Corner radius0.0590
Cutting width0.1181
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size3015
Insert size code3015Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC08
Material gradeC5; C6
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6299
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
