Iscar

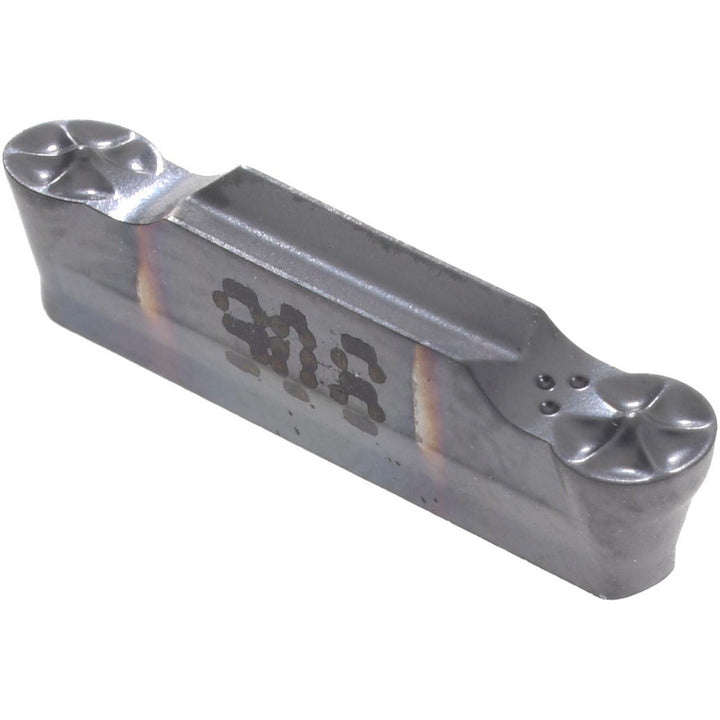

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 6200143
MFR# 6200143ISO/ANSI# ISO 13399Series Heli-Grip
$33.65List $43.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6200143 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Cutting width0.1181
Full radiusYes
Insert handNeutral
Insert height0.1970
Insert materialCarbide
Insert size3015
Insert size code3015Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6299
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
