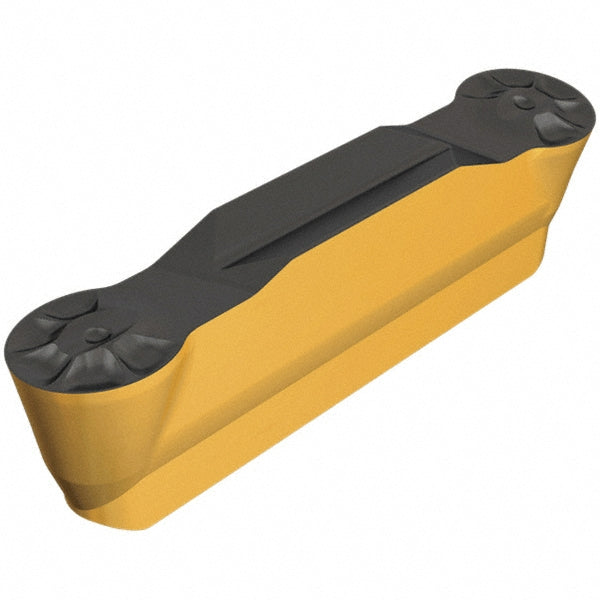

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6200146
MFR# 6200146ISO/ANSI# ISO 13399Series Heli-Grip
$28.45List $35.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6200146 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Chip breakerY
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size4020
Insert size code4020Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC08
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7480
Overall width0.1575
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
