Iscar

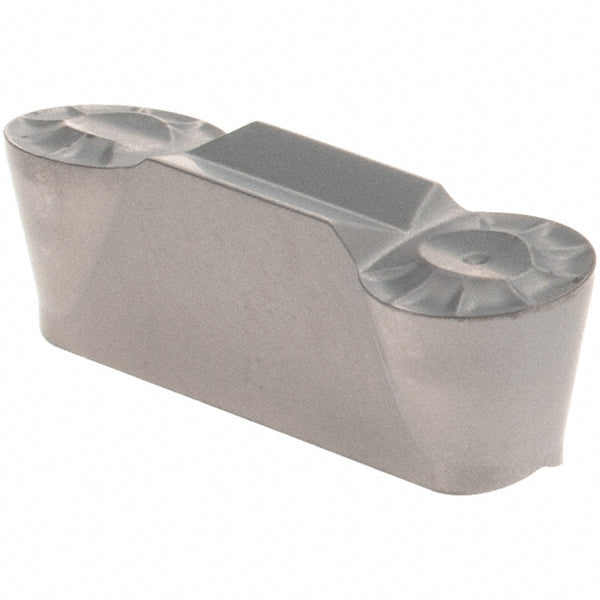

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6200154
MFR# 6200154ISO/ANSI# ISO 13399Series Heli-Grip
$32.95List $42.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6200154 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Chip breakerY
Corner radius0.1180
Cutting width0.2362
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size6030
Insert size code6030Y
Insert styleGRIP
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC08
Material gradeC2
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
