Iscar

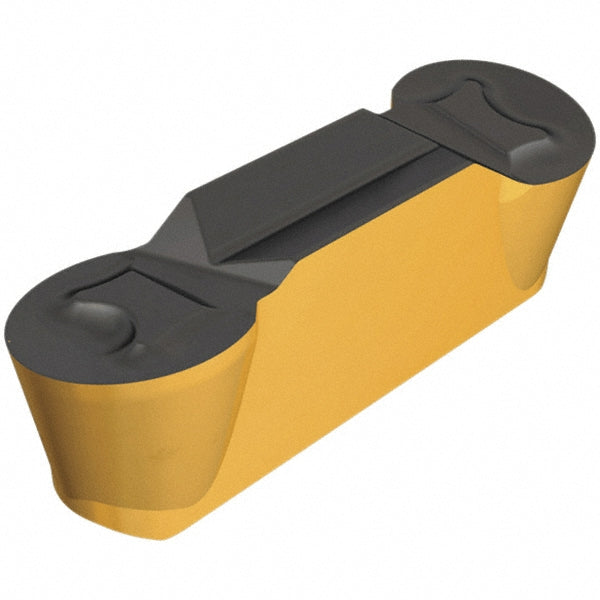

ISO 13399 Solid Carbide Insert, Grade IC9015, Al2O3 - Iscar 6200216
MFR# 6200216ISO/ANSI# ISO 13399Series Heliface
$33.65List $43.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC9015
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200216 is a ISO 13399 solid carbide indexable insert, grade IC9015, Al2O3 coated. Suited for cast iron, steel.
Specifications
Coating finishAl2O3
Coating processCVD
Corner radius0.0590
Cutting width0.1181
Full radiusYes
Insert handRight Hand
Insert materialSolid Carbide
Insert size3015
Insert size code3015
Insert styleHFPR
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC9015
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.7480
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
