Iscar

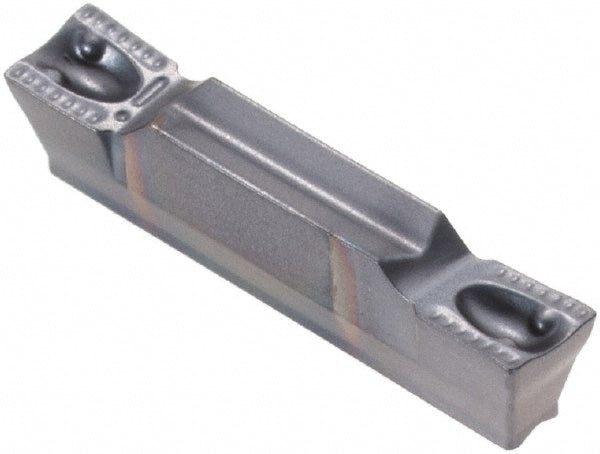

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 6200228
MFR# 6200228ISO/ANSI# ISO 13399Series Heliface
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6200228 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3002
Insert size code3002Y
Insert styleHGPL
Iso codeISO 13399
Manufacturer gradeIC908
Maximum depth of cut0.0710
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.63
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
