Iscar

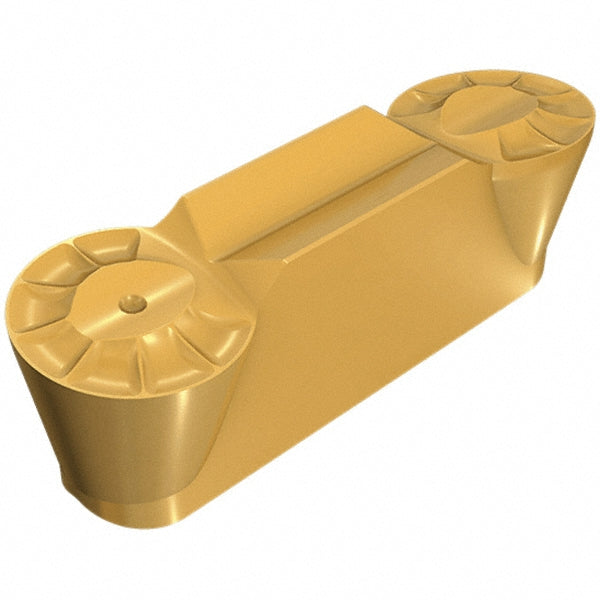

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 6200260
MFR# 6200260ISO/ANSI# ISO 13399Series Heli-Grip
$42.87List $54.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6200260 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size6030
Insert size code6030Y
Insert styleHGPL
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.748
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
