Iscar

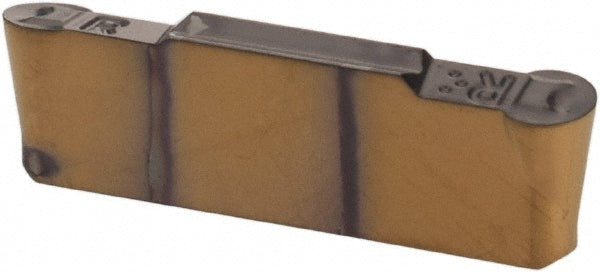

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200302
MFR# 6200302ISO/ANSI# ISO 13399Series Heliface
$34.25List $43.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200302 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutting width0.1180
Full radiusYes
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3015
Insert size code3015
Insert styleHFPR
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
