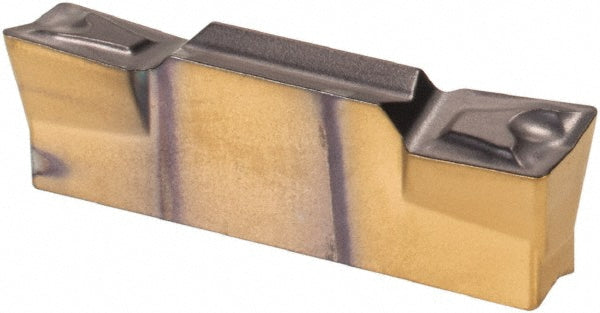

HFPR 4004 Carbide Insert, Grade IC808, AlTiN - Iscar 6200306
MFR# 6200306ISO/ANSI# HFPR 4004Cat# HFPR 4004Series Heliface
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6200306 is a HFPR 4004 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusYes
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialCarbide
Insert size4004
Insert size code4004
Insert styleHFPR
Iso codeHFPR 4004
Manufacturers catalog numberHFPR 4004
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.748
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
