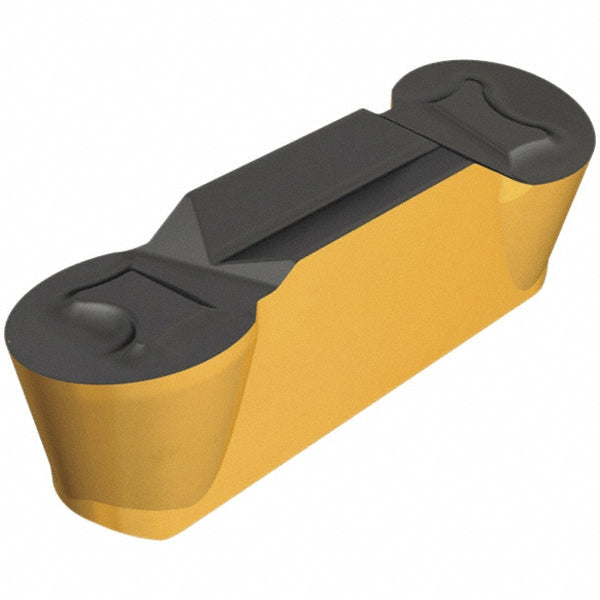

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200311
MFR# 6200311ISO/ANSI# ISO 13399Series Heliface
$38.96List $49.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200311 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0984
Cutting width0.1970
Full radiusYes
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size5025
Insert size code5025
Insert styleHFPR
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
