Iscar

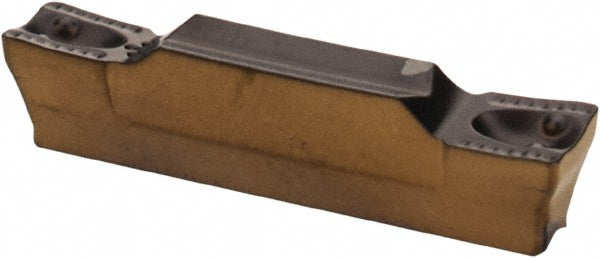

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200317
MFR# 6200317ISO/ANSI# ISO 13399Series Heli-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200317 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size3002
Insert size code3002Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeP15 to P30
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6299
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
