Iscar

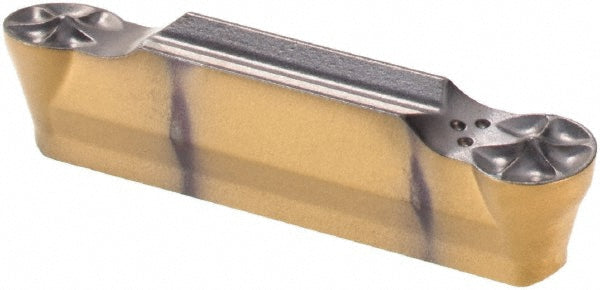

GRIP 3015Y Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200319
MFR# 6200319ISO/ANSI# GRIP 3015YCat# GRIP 3015YSeries Heli-Grip
$33.65List $43.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200319 is a GRIP 3015Y solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0591
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3015
Insert size code3015Y
Insert styleGRIP
Iso codeGRIP 3015Y
Manufacturers catalog numberGRIP 3015Y
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6220
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
