Iscar

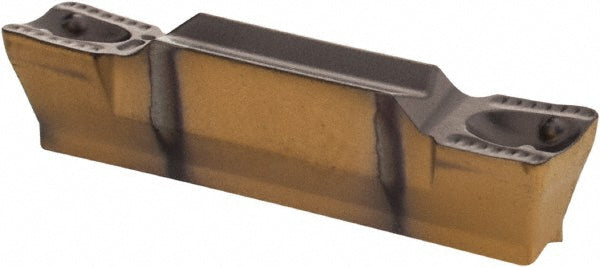

ISO 13399 Carbide Insert, Grade IC808, AlTiN - Iscar 6200320
MFR# 6200320ISO/ANSI# ISO 13399Series Heli-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6200320 is a ISO 13399 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerHG-Y
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1252in
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size318040
Insert size code318040Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0748
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6299in
Overall width0.1252in
Primary workpiece materialUniversal
StandardsISO 13399
