Iscar

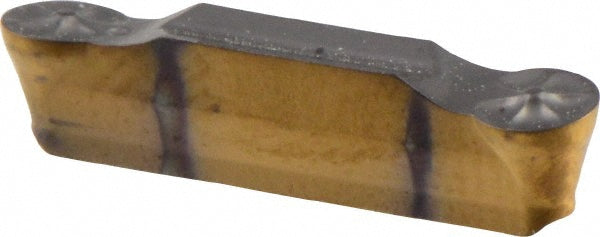

ISO 13399 Carbide Insert, Grade IC808, AlTiN - Iscar 6200321
MFR# 6200321ISO/ANSI# ISO 13399Series Heli-Grip
$33.65List $43.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6200321 is a ISO 13399 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0630
Cutting width0.1252
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size318159
Insert size code318159Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeP15-P30
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6299
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
