Iscar

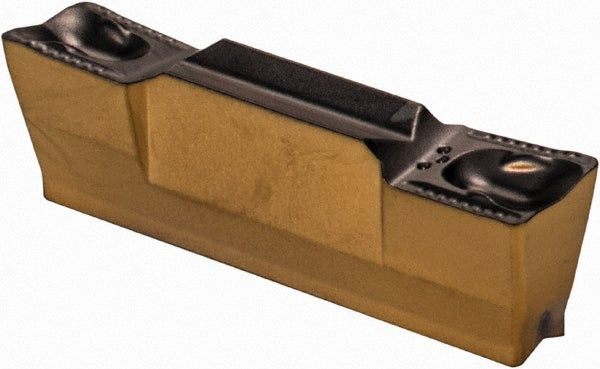

GRIP 4004Y Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200323
MFR# 6200323ISO/ANSI# GRIP 4004YCat# GRIP 4004YSeries Heli-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200323 is a GRIP 4004Y solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size4004
Insert size code4004Y
Insert styleGRIP
Iso codeGRIP 4004Y
Manufacturers catalog numberGRIP 4004Y
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7480
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
