Iscar

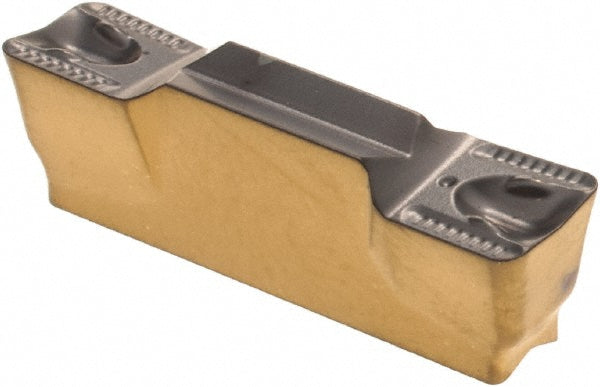

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200325
MFR# 6200325ISO/ANSI# ISO 13399Series Heli-Grip
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200325 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.1874
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size476080
Insert size code476080Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
