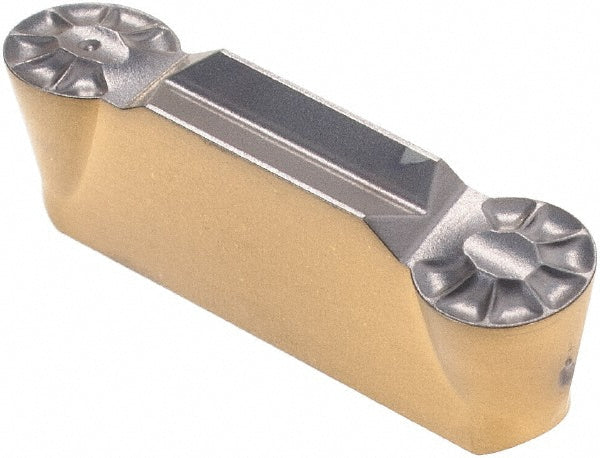

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200326
MFR# 6200326ISO/ANSI# ISO 13399Series Heli-Grip
$38.96List $49.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200326 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0937
Cutting width0.1874
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size476238
Insert size code476238Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0906
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7480
Overall width0.1874
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
