Iscar

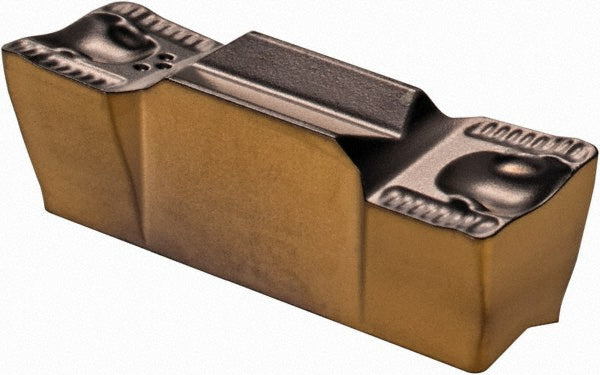

GRIP 6005Y Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200330
MFR# 6200330ISO/ANSI# GRIP 6005YCat# GRIP 6005YSeries Heli-Grip
$40.84List $52.30
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200330 is a GRIP 6005Y solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size6005
Insert size code6005Y
Insert styleGRIP
Iso codeGRIP 6005Y
Manufacturers catalog numberGRIP 6005Y
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.1417
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7480
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
