Iscar

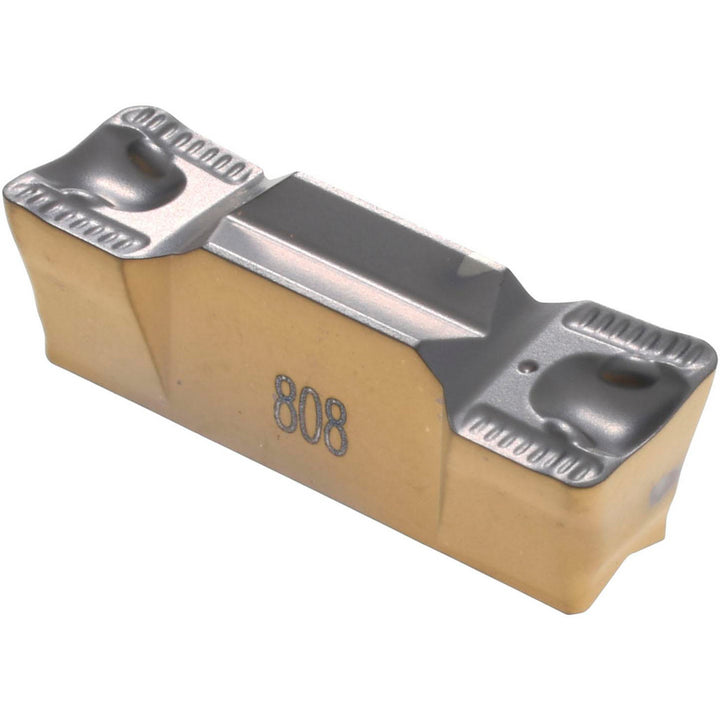

ISO 13399 Carbide Insert, Grade IC808, AlTiN - Iscar 6200333
MFR# 6200333ISO/ANSI# ISO 13399Series Heli-Grip
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6200333 is a ISO 13399 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerHG-Y
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.25
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size635080
Insert size code635080Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.1496
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.748
Overall width0.25
Primary workpiece materialUniversal
StandardsISO 13399
