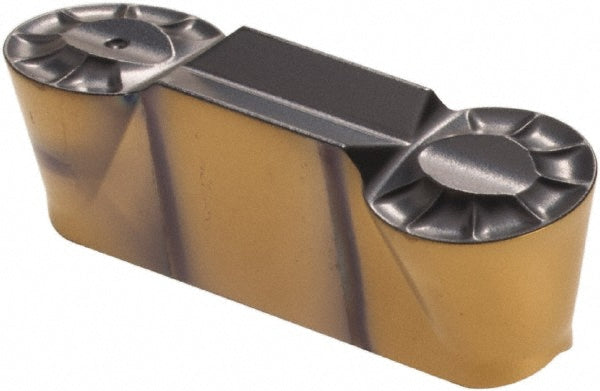

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200334
MFR# 6200334ISO/ANSI# ISO 13399Series Heli-Grip
$42.87List $54.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200334 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.1252
Cutting width0.2500
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size635318
Insert size code635318Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.1220
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7480
Overall width0.2500
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
